Oil Painting; multi-plane build
LaMa Multi-Plane
The multi-plane has four layers of glass panels
Process of Making
<4-Layered Multi-plane Supply List>
*camera rig is depended on school equipment
1 muscle rack
2 2" x 4" wood stud
2 1" x 2" wood stud
4 sliding bracket
8 1/4” MDF 2’x4’
4 16"x20" glass panels (blick) or *18"x24" glass panels (home-depot)
*glass from home-depot needs to be cut into 16"x24"
10-24-1” screws
1/4” - 1” washers
tapping tools (holder and 10-24 tap)
1 3/8” holesaw
metallic silver spray-paint
chicken wire
stapler
parchment paper
wooden clothes pins
white foam board
power strip
reflective tape (optional)
Lighting
16 lightbulbs
4 dimmer switch (look for that works for both LED and incandescnet
4 power cables
4 16ga electrical wire
*it's a good idea to have two different colors of wires, so it is less confusing when wiring them together
*it's a good idea to have two different colors of wires, so it is less confusing when wiring them together
16 lightbulb sockets
a bag of zip ties
general soldering tools
 |
| muscle rack |
 |
| a wooden socket casing |
 |
| lighting wiring test |
 |

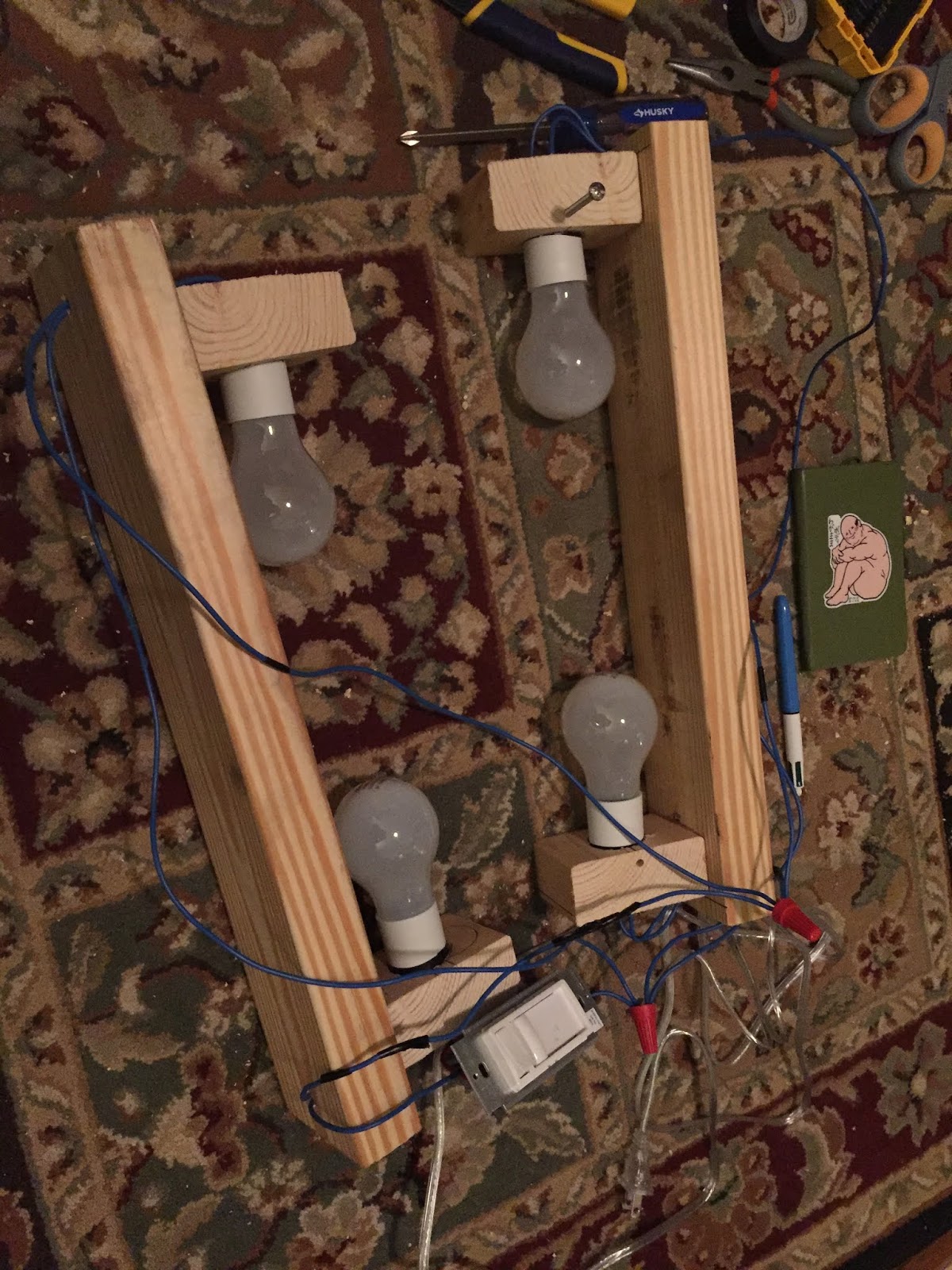

| spray-painted lighting blocks |
 |
| laser cut of a frame for glass |
 |
| a glass frame installed with sliding bracket |
 |
| initial assembly of first layer |
multiplane in action!
multi-plane with two layers
Mason LaHue testing the multi-plane
new camera rigging using speed rail system
